ZT889TUK

Time：2018-01-04

ZT889 time attendance and access control terminal adopts VER 15.8 fingerprint algorithm to improve identification speed. It can manage3000/10000/30000/50000 templates within 1.0 second (I: N identification). ZT889 features high performance, high image quality optical fingerprint sensor. The patented optical sensor is resistant to scratches, impact, vibration and electrostatic Shock.

Because of the common development platform, existing customer will be able to use ZT889 and co-exist with any existing Xingwill's readers without re-enrolling the users. The ZT889 can be used in multi factor authentication that supports fingerprint, password, Proximity and Smart card. It also has an option for Wi-Fi and GPRS connectivity.

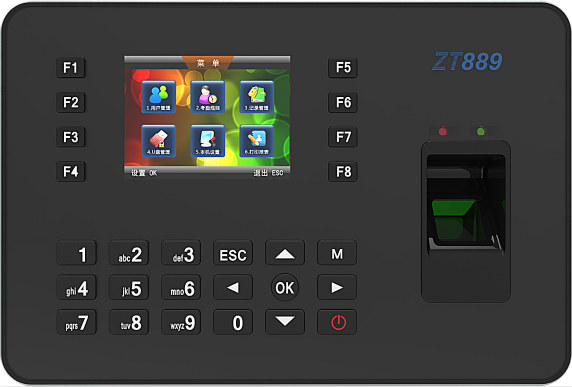

The ZT889 has camera and 2.8” color TFT-LCD display, so it can display the individual graphical interfaces and personnel finger's photos. It comes standard with TCP/IP, RS-485, USB-host, USB-client, 26 functions keys, T9 input method, backup battery and has access control connectivity for Wigand-in, Wigand-out, Door lock connection, Alarm, Bell, Remote to open door.

Fingerprint Template Capacity	3000
Password (PIN) Capacity	3000
Card Capacity	3000 (optional)
Record Capacity	80,000
Verification Mode	1:1 or 1:N
Communication	TCP/IP, RS485 & U-disk Via U-disk it can send fingerprint data to other ZT889
Recognition Mode	Fingerprint or password or RF ID Card (optional)
Keyboard and Display	2.8 inch color screen and Touch button
Power Supply	5VDC; standby current: 0.5A; operating current: 0.7A when not running electric strike lock
Identification speed	＜=0.7 second
FRR (False Rejection Ratio)	＜=0.01%
FAR (False Acceptance Ratio)	＜=0.0001%
Operating Environment	Temperature: 0°C – 40°C Humidity: 20% – 80%
Menu Language Support	In both Chinese and English and other languages
Dimension	199(L) x 134(W) x 30(D) mm
